SQL: Data Definition Language (DDL) clauses 2
1. Introduction
With today's independent study material you are going to deepen your knowledge of relational database design. For example, you will learn to compare and implement various types of database relationships (e.g. One-to-one, many-to-one etc.). Furthermore, you will acquire skills that enable you to correctly deploy DDL related SQL clauses such as PRIMARY KEY, and REFERENCES.

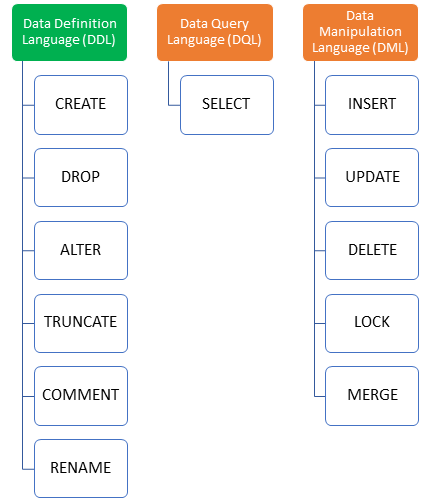

Figure 1. Types of SQL.
1a Complete the How Do I Make And Populate My Own Database? module in Codeacademy, which you can find here.
2. What is a database schema/key?
A database schema is a schematic design that represents the storage of your data in a database. It describes both the organization of data and the relationships between tables in a given database.
Some database schemas are written in a language that can be interpreted by database management software, while others are comprised of abstract diagrams.
Figure 2. Example of a relational database schema.
2a The municipality of Oosterhout asks you, as the new data analyst, to build a relational database with the data from Table 1. How would you solve this task? Elaborate on your approach.
| ClientKey | ToewijzingKey | ClientVoornamen | ClientTussenvoegsel | ClientAchternaam | GeboorteJaar | ClientGeslacht | NotaRegelBedrag | NotaJaar | NotaKwartaal | NotaMaand | BuurtCode | BuurtNaam |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 23 | Bader | van | Wilgenburg | 2007 | Jongen | 49.8 | 2019 | Qtr 3 | September | BU08260102 | Slotjes-West |
| 2 | 376 | Lorena | ? | Steensma | 2010 | Meisje | 0.3 | 2020 | Qtr 4 | October | BU08261300 | Dorst |
| 3 | 564 | Jikke | ? | Bosveld | 2007 | Jongen | 50.1 | 2020 | Qtr 2 | June | BU08261307 | Buitengebied Dorst-Zuid |
| 4 | 86 | Maroua | de | Backer | 2009 | Meisje | 2022.21 | 2015 | Qtr 4 | November | BU08260601 | Sterrenbuurt |
| 5 | 23 | Izaak | ? | Lake | 2008 | Jongen | 67.8 | 2019 | Qtr 2 | June | BU08260300 | Vogelbuurt |
| 5 | 76 | Izaak | ? | Lake | 2008 | Jongen | 90.5 | 2019 | Qtr 4 | October | BU08260300 | Vogelbuurt |
Table 1. A selection of demographic, geographic and financial information from the youth care database (Version 1).
The table can downloaded as a csv.-formatted file, here.
2b What is ‘snake case'? Provide an example based on the data in Table 1.
| ClientKey | ClientVoornamen | ClientTussenvoegsel | ClientAchternaam | GeboorteJaar | ClientGeslacht | NotaRegelBedrag | NotaJaar | NotaKwartaal | NotaMaand | BuurtCode | BuurtNaam |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Bader | van | Wilgenburg | 2007 | Jongen | 49.8 | 2019 | Qtr 3 | September | BU08260102 | Slotjes-West |
| 2 | Lorena | ? | Steensma | 2010 | Meisje | 0.3 | 2020 | Qtr 4 | October | BU08261300 | Dorst |
| 3 | Jikke | ? | Bosveld | 2007 | Jongen | 50.1 | 2020 | Qtr 2 | June | BU08261307 | Buitengebied Dorst-Zuid |
| 4 | Maroua | de | Backer | 2009 | Meisje | 2022.21 | 2015 | Qtr 4 | November | BU08260601 | Sterrenbuurt |
| 5 | Izaak | ? | Lake | 2008 | Jongen | 67.8 | 2019 | Qtr 2 | June | BU08260300 | Vogelbuurt |
Table 2. A selection of demographic, geographic and financial information from the youth care database (Version 2).
2c Write a query that designates multiple columns from Table 2 to serve as the primary key (you cannot use the table's primary key ‘ClientKey'!).
The table can downloaded as a csv.-formatted file, here.
3. What are database relationships?
Relationships are the cornerstone of relational databases. Data analysts/engineers can query the database and get results that combine data from different tables into a single table. In the Design databases with PostgreSQL course on Codeacademy, you are made familiar with the three types of database relationships; One-to-one, many-to-one, and many-to-many.
3a The municipality of Oosterhout asks you to provide a brief presentation on relational databases to policymakers from the social domain. As part of your preparation, you come up with three examples for each database relationship type (See Table 3). Write your examples down.
| Database Relationship | Diagram sign | Example |
|---|---|---|
| One-to-one | ||
| One-to-many | ||
| Many-to-many |
Table 3. Types of database relationships.
4. Additional resources (optional)
Do you have time left, and want to review the material in this section of the Project Brief, explore the following additional resources:
Instructional videos:
- LinkedIn Learning: PostgreSQL Essential Training.
- LinkedIn Learning: Learning Relational Databases.
Books/articles/webpages etc.:
- Batra, R. (2018). SQL primer: An accelerated introduction to SQL basics. (Freely available through BUAS' MetaSearch).
- W3schools: SQL Tutorial.
Literature
Batra, R. (2018). SQL primer: An accelerated introduction to SQL basics. (Freely available through BUAS' MetaSearch).
